Description

SIM7600G-H



SIM7600G-H 4G HAT for Raspberry Pi, LTE Cat-4 4G / 3G / 2G Support, GPS Glonass GNSS Positioning, Global Band 100% new&original

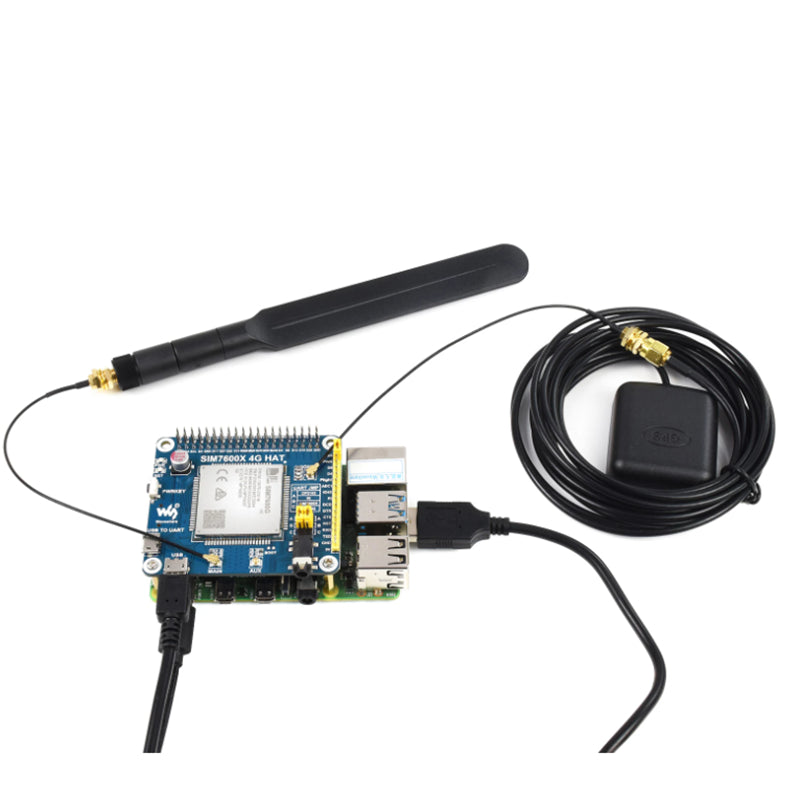

  1. SIM7600G-H 4G HAT x1

  2. LTE Antenna x1

  3. GPS External Antenna (B) x1

  4. USB type A plug to micro plug cable x2

  5. RPi screws pack (2pcs) x1

1
2
3
4
5

Weight:0.25 kg



PACKAGE CONTENT




WIKI:  www.waveshare.com/wiki/SIM7600G-H_4G_HAT

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

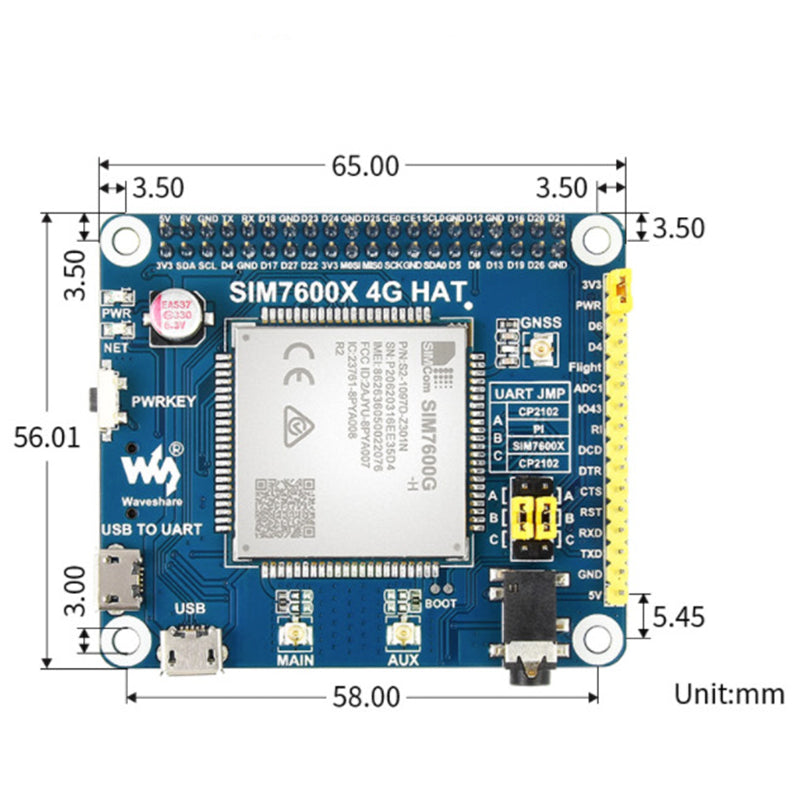

Outline Dimensions
Pinout Definition

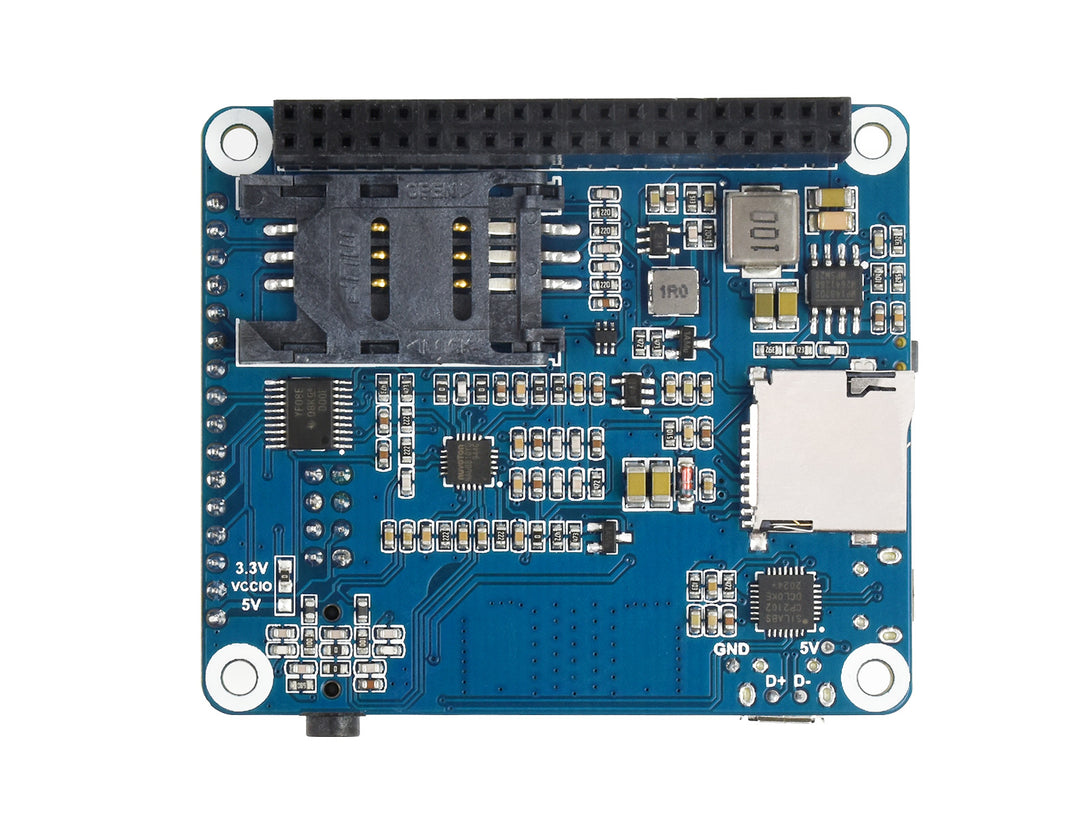

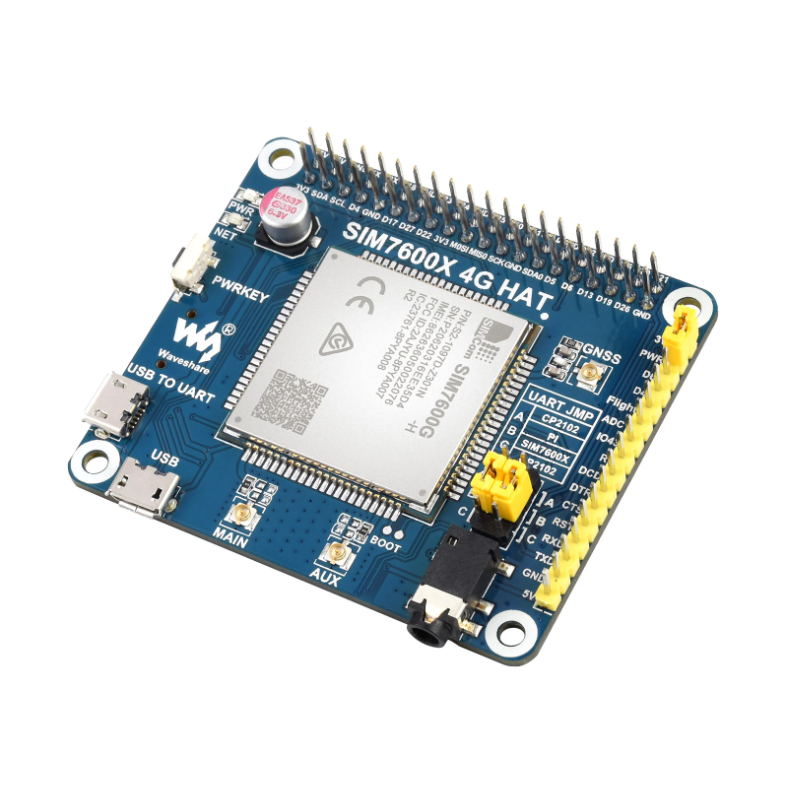

What's On Board

  1. SIM7600G-H

  2. CP2102 USB to UART converter

  3. NAU8810 audio decoder

  4. TXS0108EPWR voltage translator
    translates 3.3V/5V into 1.8V

  5. MP2128DT power chip

  6. SPX29302 power chip

  7. Raspberry Pi GPIO header

  8. SIM7600 control interface
    for connecting with host boards like Arduino/STM32

  9. SIM card slot
    supports 1.8V/3V SIM card

  10. TF card slot
    allows data storage like files, messages, etc.

  11. 3.5mm earphone/mic jack

  12. USB interface
    for testing AT Commands, getting GPS positioning data, etc.

  13. USB to UART interface
    for serial debugging, or login to Raspberry Pi



14.MAIN antenna connector

15.AUX antenna connector

16.GNSS antenna connector

17.Power switch

18.Network status indicator

19.Power indicator

20.Operating voltage selection jumper
configured via 0 resistor jumper
VCCIO - 3.3V: set operating voltage as 3.3V
VCCIO - 5V: set operating voltage as 5V

21.UART selection jumper
A: access Raspberry Pi via USB to UART
B: control the SIM7600 by Raspberry Pi
C: control the SIM7600 via USB to UART

22.PWR configuration jumper
PWR - 3V3: auto startup on power-up (default)
PWR - D6: startup/shutdown by the Raspberry Pi D6 pin
Flight mode configuration jumper
NC by default, no flight mode control pin
Flight - D4: flight mode is controlled by the Raspberry Pi D4 pin

23.USB connector solder pads

24.BOOT forced programming solder pads

Telephone Call & SMS Support

Making Telephone Call Or Sending SMS By AT Commands, With Onboard Audio Jack

GNSS Positioning

Supports GPS, BeiDou, Glonass, LBS Base Station Positioning

Cloud Communication

Supports Communication Protocols Including TCP/UDP/FTP/FTPS/HTTP/HTTPS

Dial-Up On Windows/Linux

LTE Cat-4:Up To 50Mbps (Uplink) / Up To 150Mbps (Downlink) *
3G (HSPA ):Up To 5.76Mbps (Uplink) / Up To 42Mbps (Downlink) *

* stands for idealized data rate, the actual data rate depends on factors like network coverage, traffic congestion, base station condition, etc.

Global Band 4G / 3G / 2G Support

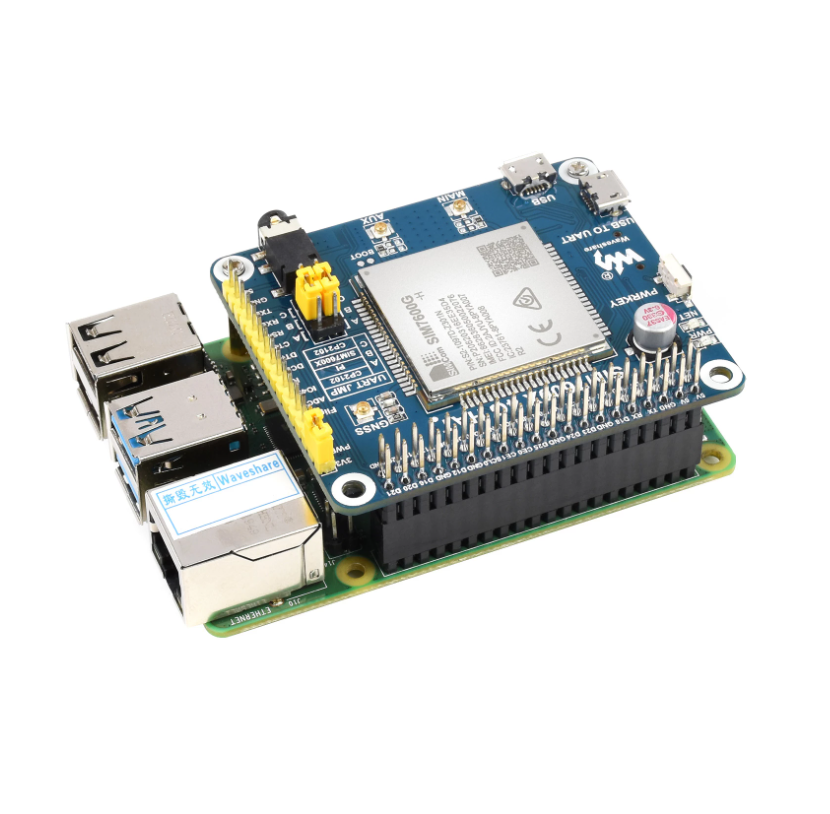

Standard Raspberry Pi 40PIN GPIO

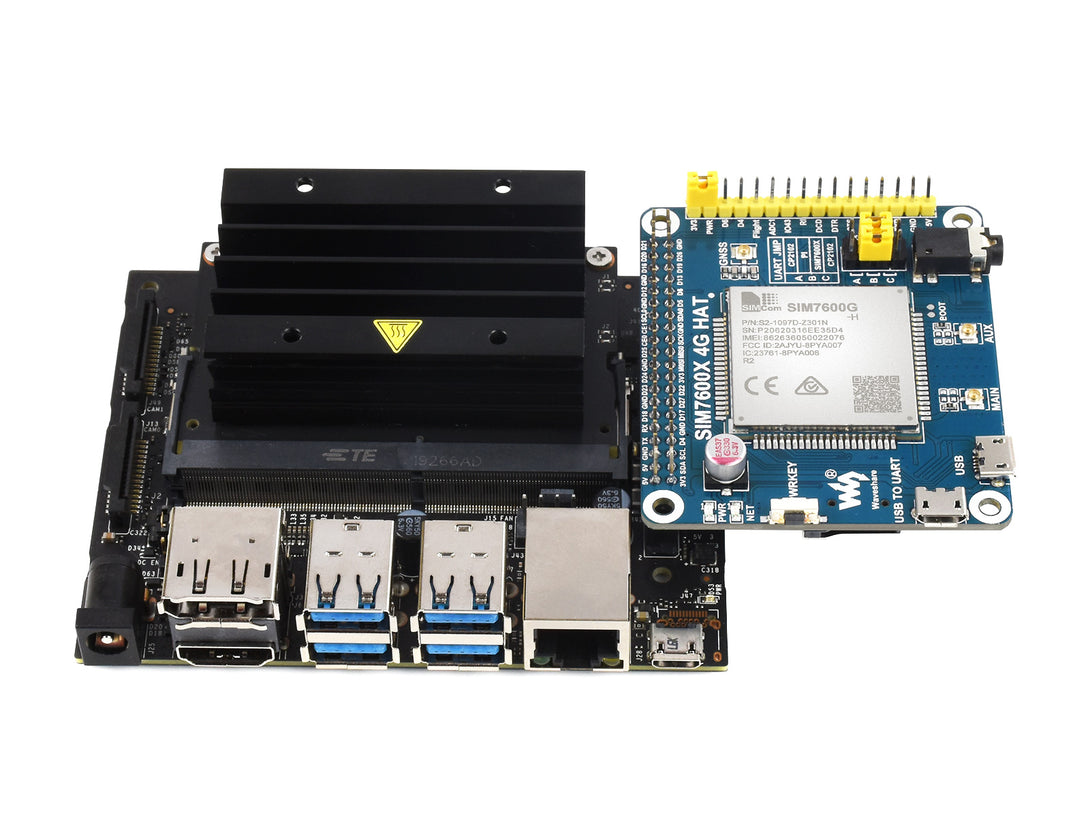

Compatible With Raspberry Pi Series Boards, Jetson Nano

Specifications

FREQUENCY BAND

LTE Cat-4

LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66
LTE-TDD: B34/B38/B39/B40/B41

3G

UMTS/HSDPA/HSPA : B1/B2/B4/B5/B6/B8/B19

2G

GSM/GPRS/EDGE: 850/900/1800/1900 MHz

GNSS

Satellite systems

GPS/Beidou/GLONASS

Receiver type

16-channel

C/A Code

Sensitivity

-159 dBm (GPS) / -158 dBm (GLONASS) / TBD (BeiDou)

Cold starts: -148 dBm

Time-To-First-Fix (open air)

Cold starts: <35s

Hot starts: <1s

SMS AND AUDIO

SMS

Supported types: MT, MO, CB, Text, PDU

Storage: USIM card and ME (default)

Audio feature

Supports echo cancellation

Supports noise reduction

OTHER

Power supply

5V

Operating voltage

5V / 3.3V (configured via jumper)

Operating temperature

-30°C ~ 80°C

Storage temperature

-45°C ~ 90°C

Dimensions

56.21mm × 65.15mm
Features At A Glance

  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano

  • Supports dial-up, telephone call, SMS, TCP, UDP, DTMF, HTTP, FTP, etc.

  • Supports GPS, BeiDou, Glonass, LBS base station positioning

  • Onboard USB interface, to test AT Commands, get GPS positioning data, and so on

  • Onboard CP2102 USB to UART converter, for serial debugging

  • Breakout UART control pins, to connect with host boards like Arduino/STM32

  • SIM card slot, supports 1.8V/3V SIM card

  • TF card slot for storing data like files, messages, etc.

  • Onboard audio jack and audio decoder for making telephone call

  • 2x LED indicators, easy to monitor the operating status

  • Onboard voltage translator, operating voltage can be configured to 3.3V or 5V via jumper

  • Baudrate: 300bps ~ 4Mbps (default: 115200bps)

  • Autobauding baudrate: 9600bps ~ 115200bps

  • Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set)

  • Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT

  • Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

4G HATFOR RASPBERRY PI

Enabling LTE Cat-4 4G / 3G / 2G Communication & GNSS Positioning

Based on SIM7600G-H, Global Band






SIM7600G-H 4G HAT For Raspberry Pi, LTE Cat-4 4G / 3G / 2G Support, GNSS Positioning, Global Band
