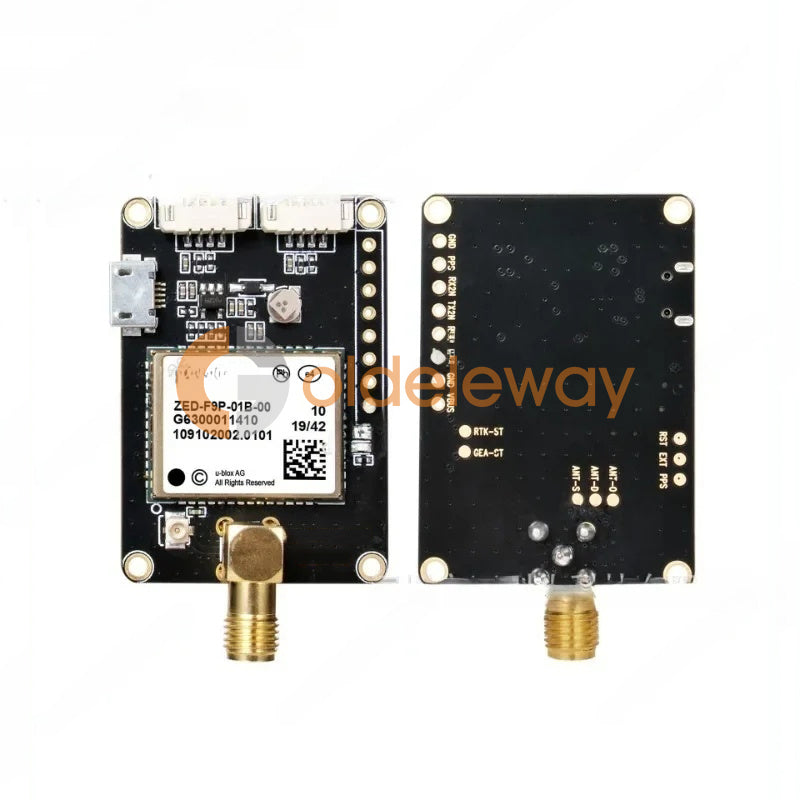

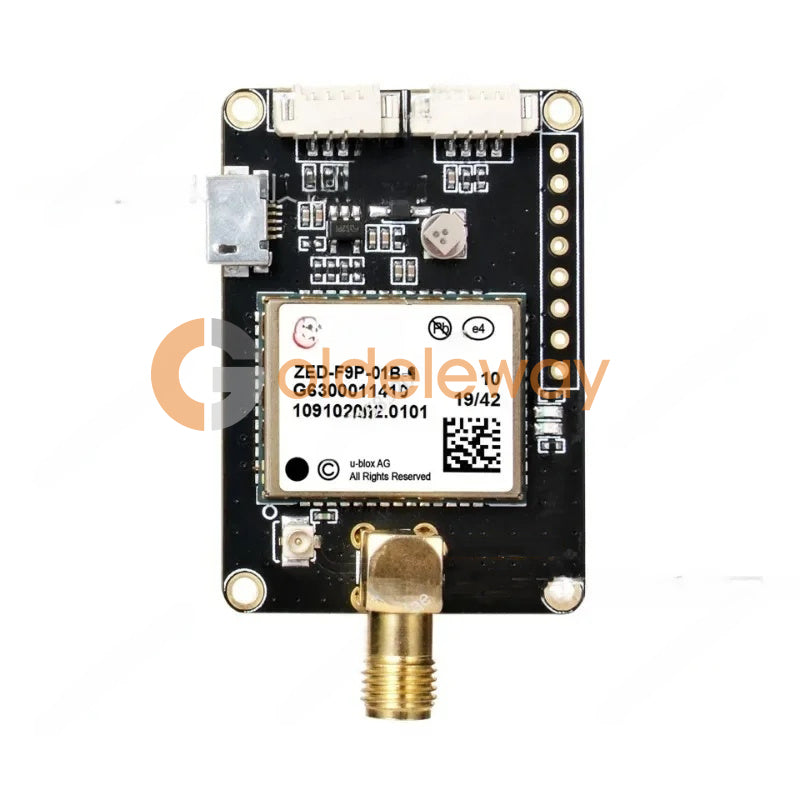

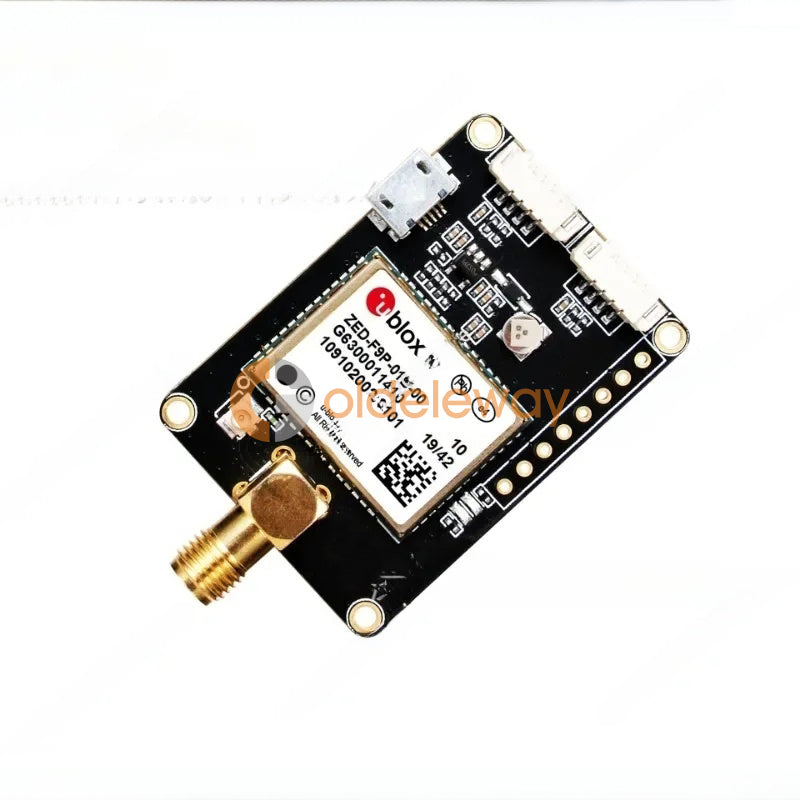

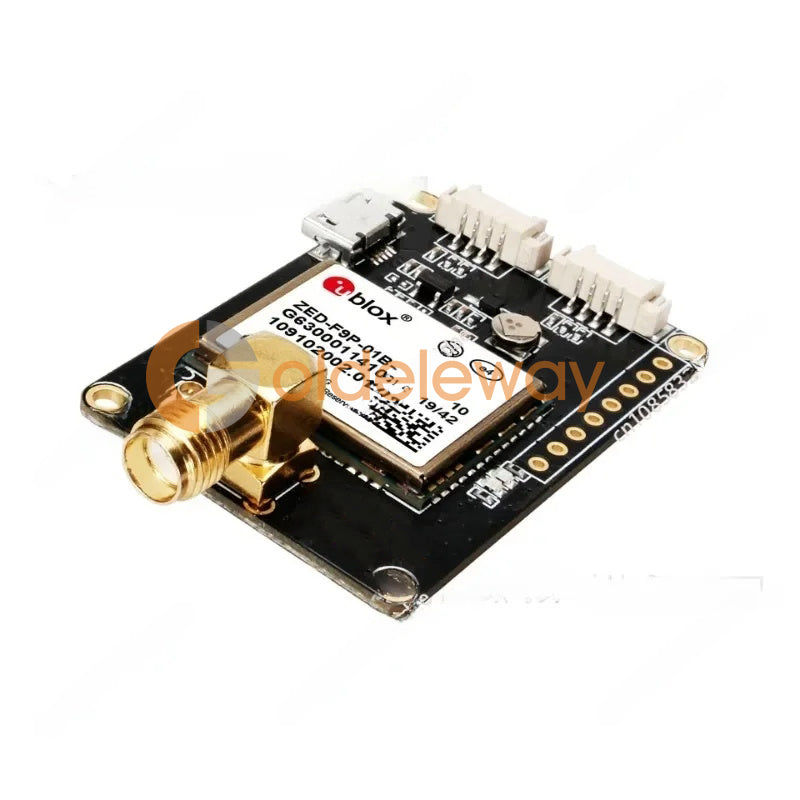

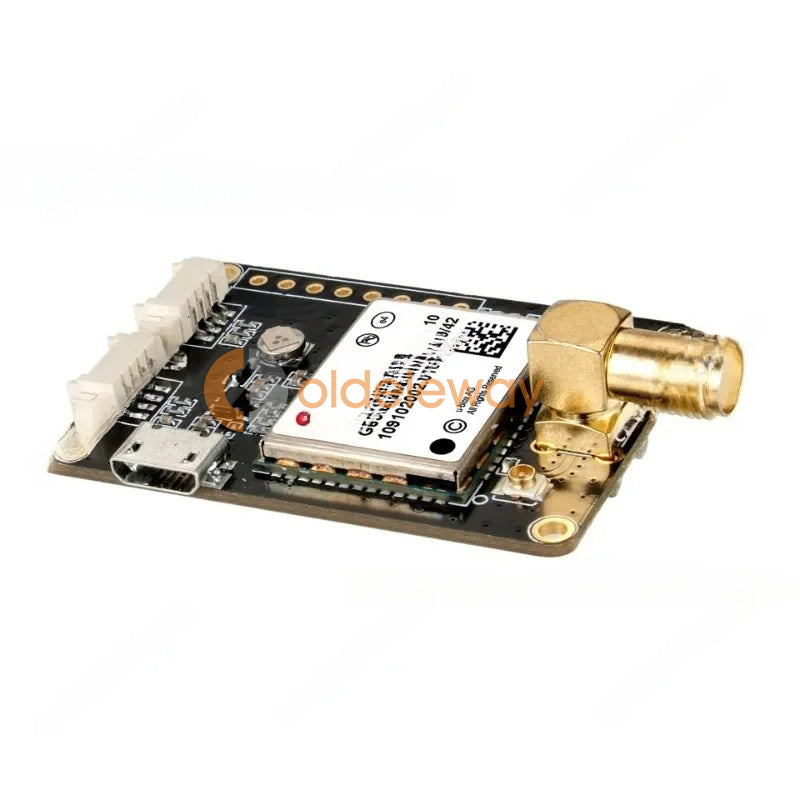

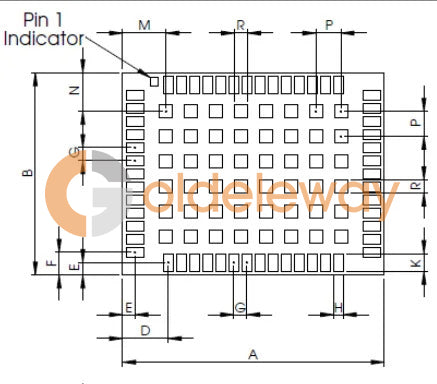

ZED-F9P-01B-01 Excellent GNSS Board Works Serial I2C ESP32 Controlling I2C SPI UM980 GNSS Modules

People are viewing this right now
sold in last hours
$168.00 USD $138.00 USD SAVE 18%
Add to Wishlist
Order in the next [totalHours] hours %M minutes to get it between and
Contact Us

visamasteramazon paymentsamerican expressapple paypaypal
Description

Describe

USB interface • A USB C connector makes it easy to connect the ZED-F9P to the u-center forconfiguration and quick viewing of NMEA sentences. A Raspberry Pi or othersingle-board computer can also be connected via USB. The ZED-F9P enumerates as aserial COM port, which is independent of the UART interface. • A 3.3V regulator is provided to regulate the 5V USB to the 3.3V required by themodule. An external 5V voltage can be applied, or a direct feed of 3.3V can beprovided. Note that if 3.3V is supplied directly to the board, it should be a cleansupply with minimal noise (less than 50mV VPP ripple is ideal for precise positioning).3.3V regulator capable of delivering 600mA from 5V input, while USB C connection iscapable of delivering 2A

J3 port The GH1.25-6P can be used to connect to the Pixhawk autopilot, you can also usethis connector to power the board. Pixhawk JST-GH connectors adhere to Pixhawkstandards: •1: 5V IN
•2: ZED-F9P UART1 receiving (3.3V level)
•3:ZED-F9P UART1 TX(3.3V level)
•4.5: Not connected
•6: Ground
led The board includes four status LEDs
Power: When 3.3V is activated via USB or via the Qwiic bus, the power LED willilluminate red.
PpS: Once position lock is achieved, the Pulse Per Second LED will illuminate onceper second with a yellow light.
RTK: The RTK LED blue light will stay on after powering on. After successfullyreceiving RTCM data, it will start flashing. This is a good way to see if the ZED-F9p is getting RTCM from various sources. After getting the RTK fix, the LED will turn off.
FENCE: The FENCE LED can be configured to turn on/off geofencing applications.
Antenna interface : Provides two antenna interfaces, one SMA external screwinternal hole, and one U.FL socket lPEX, any one is acceptable
