DML3006LFDS-7
| Switch Type | General Purpose |
| 1 | |
| Ratio - Input:Output | 1:01 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 0.5V ~ 13.5V |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Current - Output (Max) | 10.5A |
| Rds On (Typ) | 8mOhm |
| Input Type | Non-Inverting |
| Features | - |
| Fault Protection | Short-Circuit, Thermal Shutdown, UVLO |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |

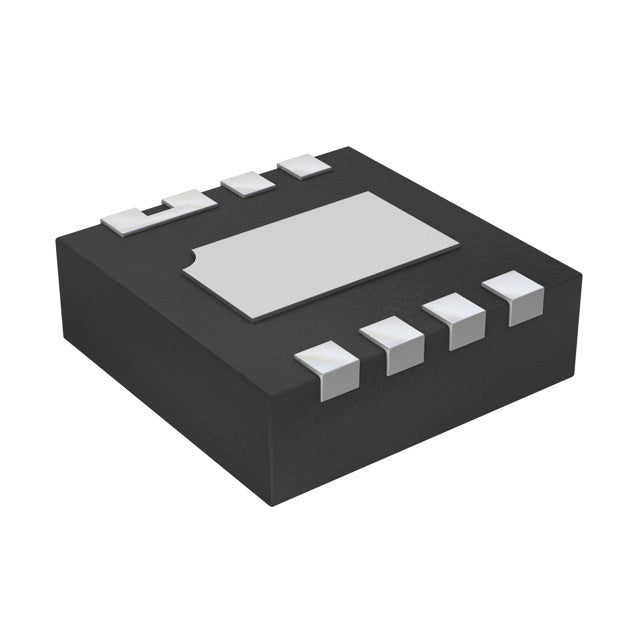

| Supplier Device Package | V-DFN2020-8 (Type F) |
| Package / Case | 8-VFDFN Exposed Pad |
Describe
The DML3006LFDS is a single channel load switch with very low on-resistance in a small package. It contains an N-Channel MOSFET for up to 13.5V input voltage operation and 10A current channel. The load switch is controlled by a low voltage control signal through the ON Pin.
Characteristic
Low RDS(ON) – Ensures On-State Losses are Minimized
0.5V to 13.5V Input Voltage Range
10A Continuous Current
Low RDS(ON) 10.8mΩ at VCC = 5V, VIN = 1.8V
310µA Low Quiescent Current
63µs Turn On Rise Time
Integrated Quick Output Discharge Resistor
Moisture Sensitivity: Level 1 per J-STD-020
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free. “Green” Device
Application
Portable Computers
Ultrabooks
Tablet PCs
Set Top Boxes
LCD TV
Telecom/Networking/Datacom Equipment
SSD
Consumer Electronics
